Main Features

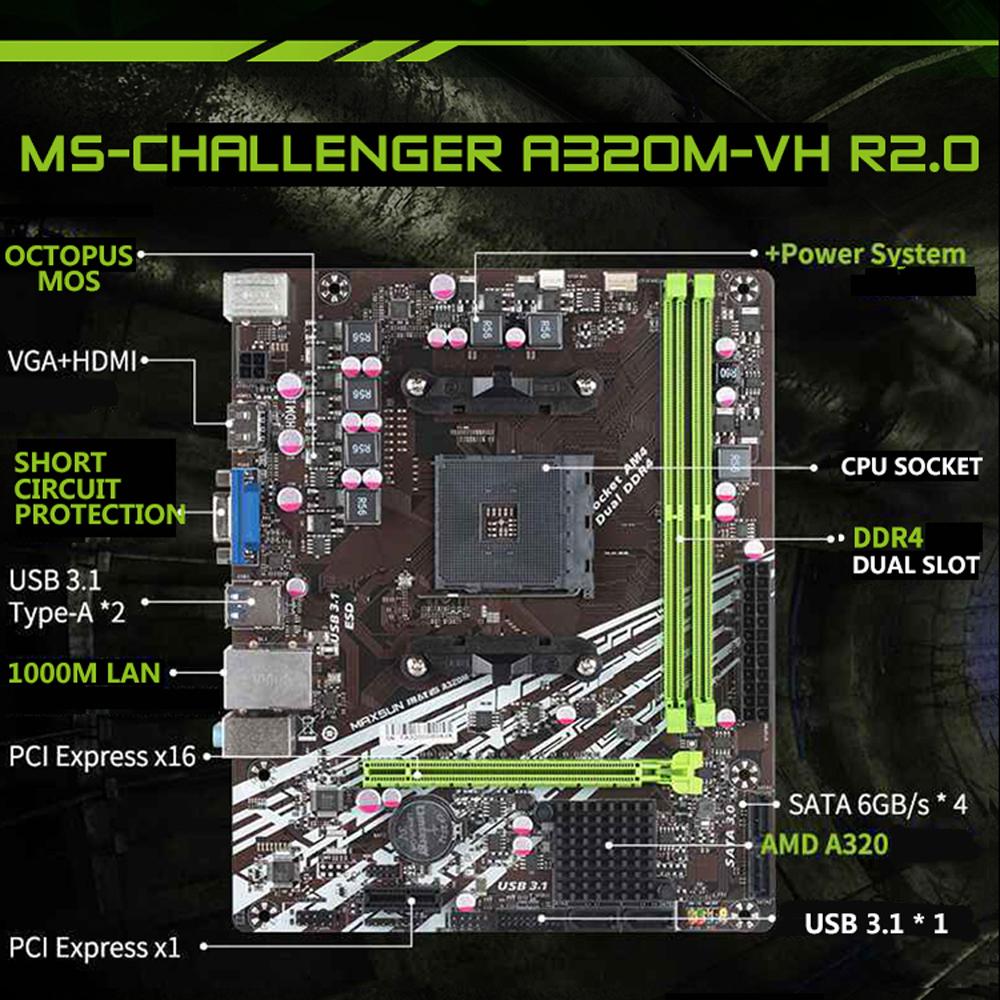

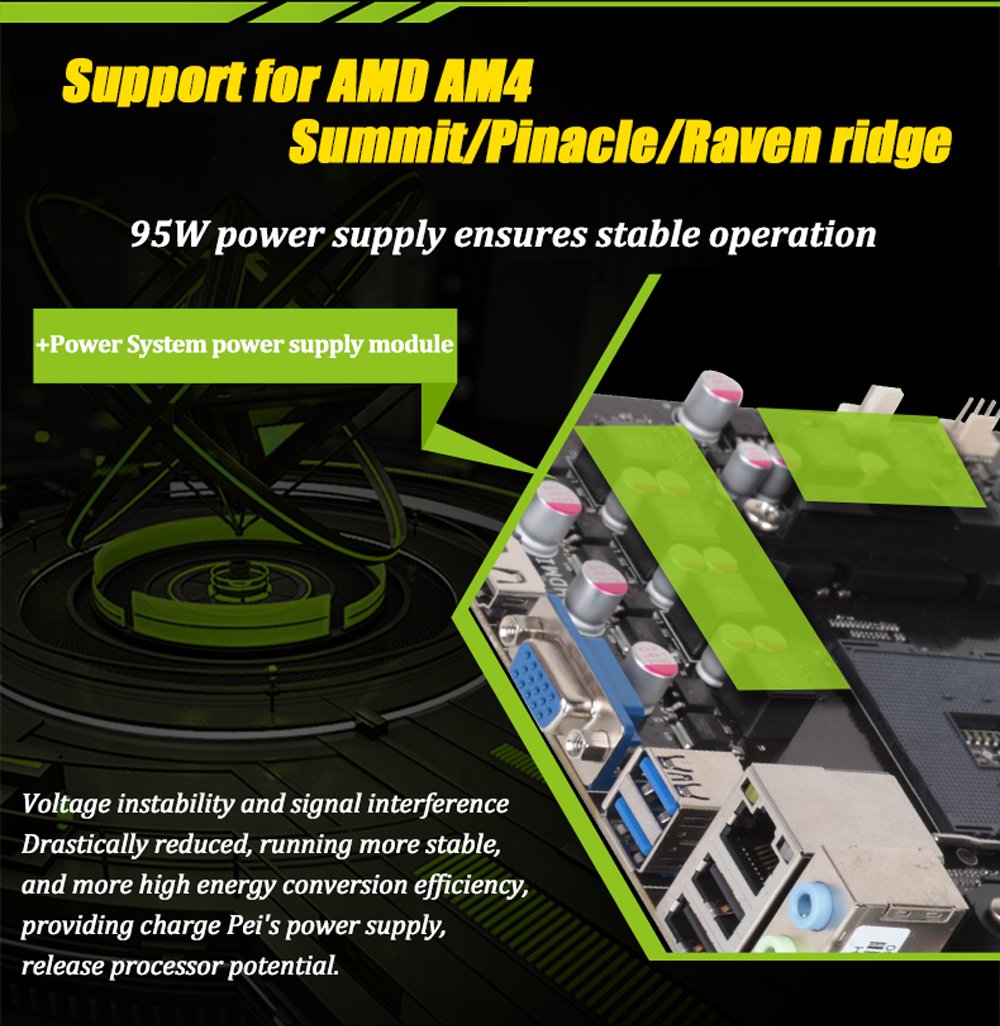

● Support AM4 interface Ryzen CPU / APU ● Support for the eighth generation APU Ridge ● Dual DDR4 memory slot supports dual channel(32GB max) ● RAM frequency: 2133/2400/2666/2800(OC)/2933(OC)MHz ● Five-tone audio optimization ● 6 phase power supply ● Full HD output interface ● Double thunder protection, ESD static protection, intelligent short circuit protection
Specification

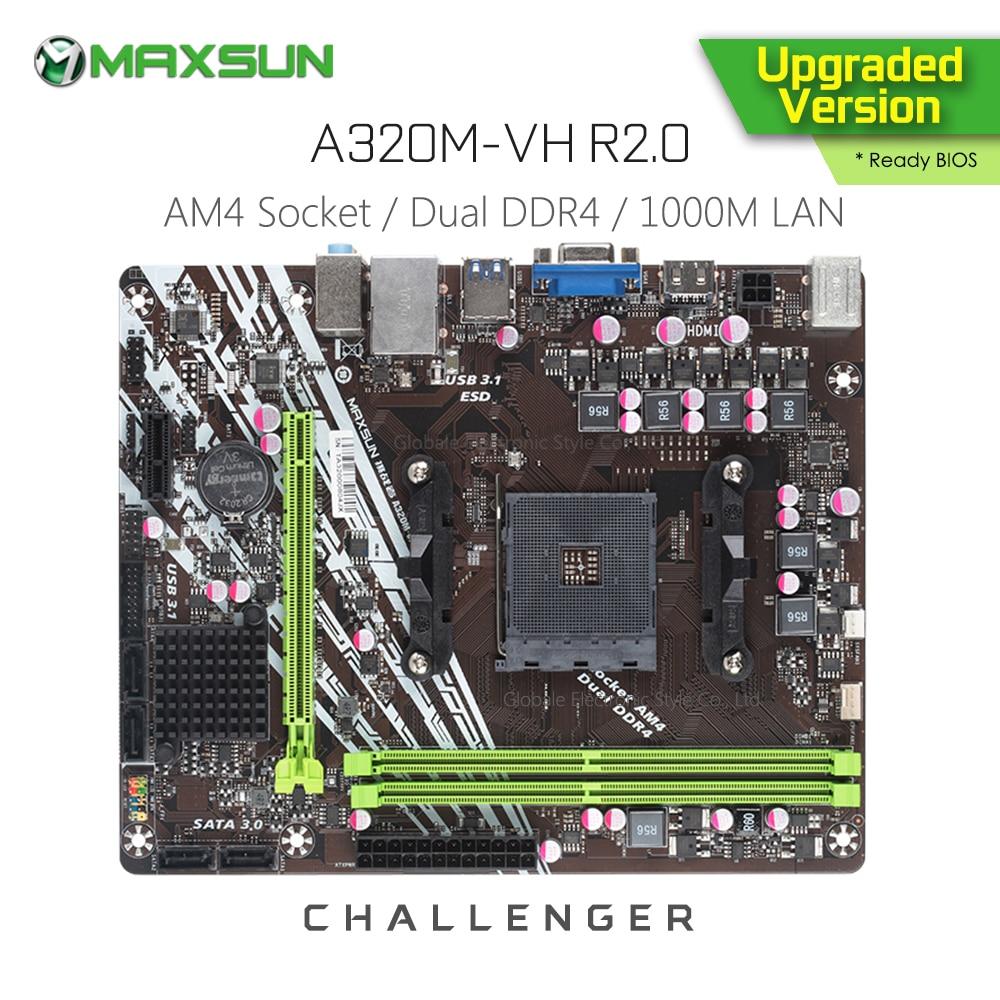

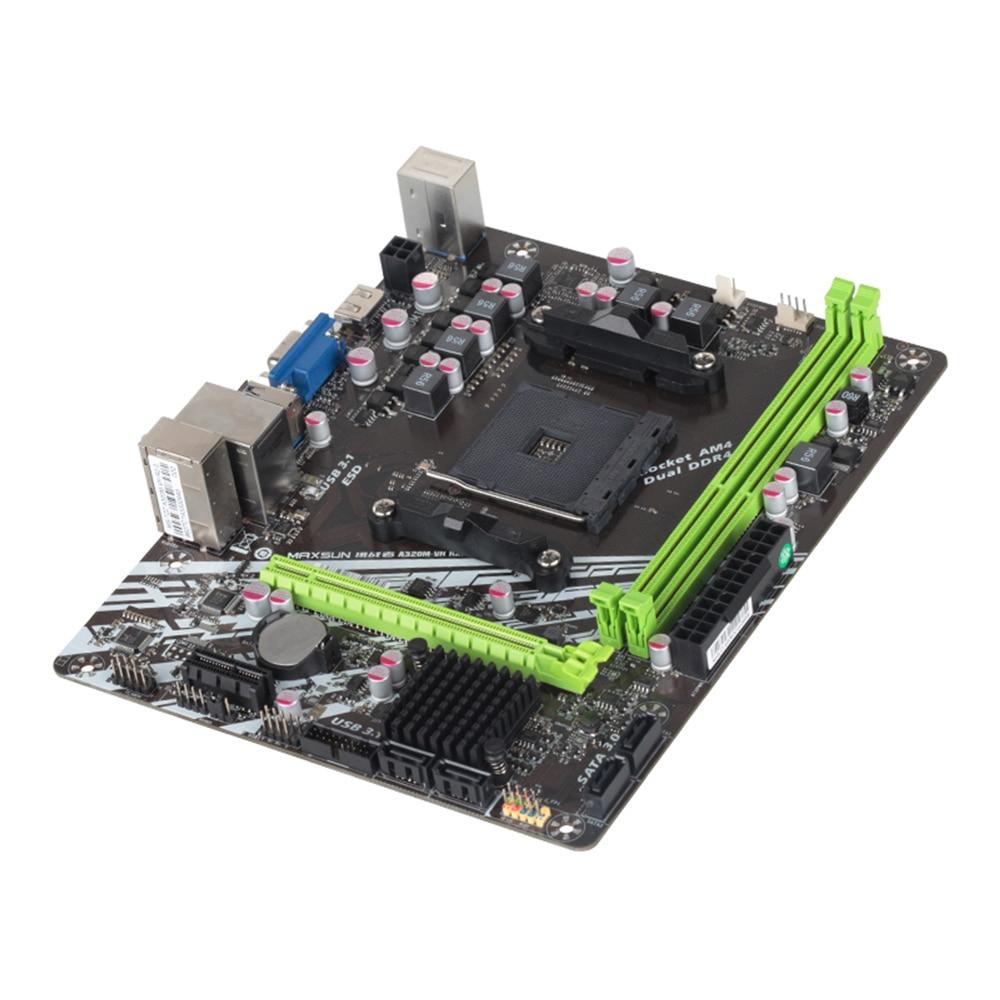

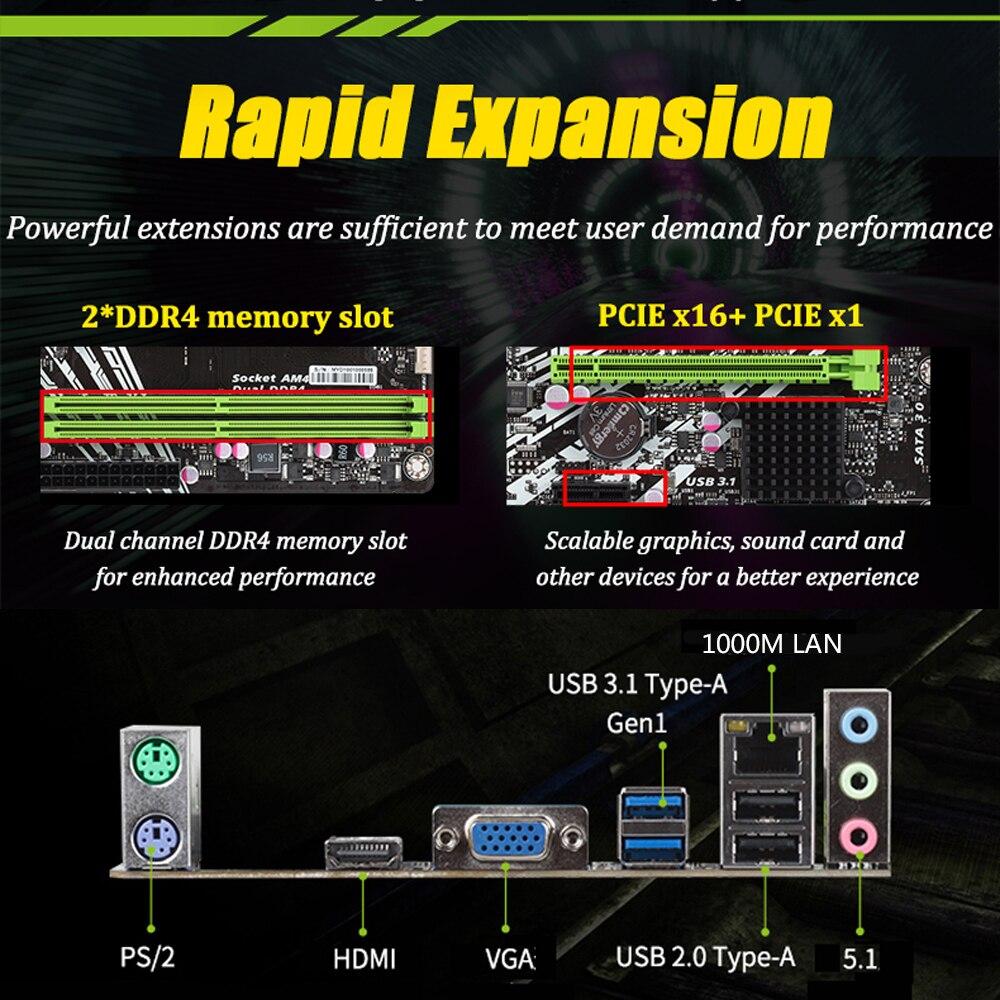

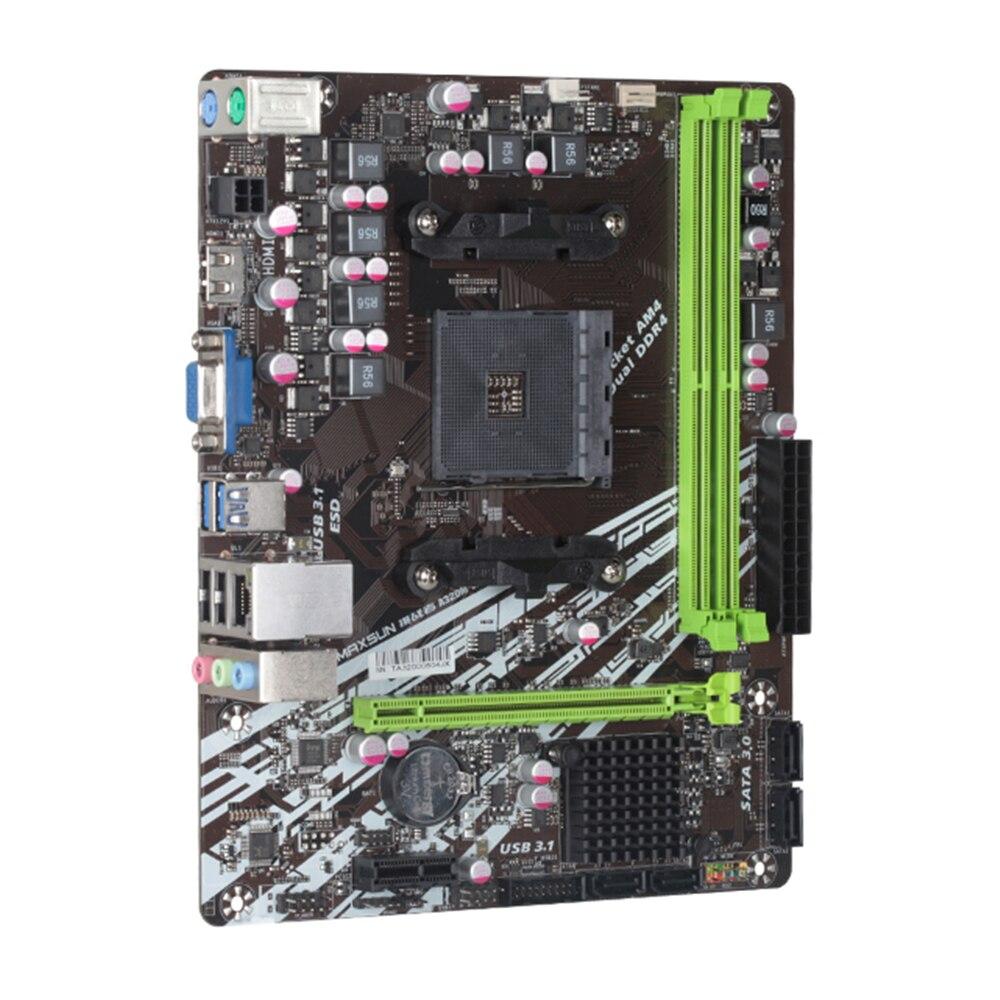

Brand: Maxsun Model: MS-Challenger A320M-VH R2.0 Type: Motherboards CPU Socket Type: AMD Interface: Audio Jack,HDMI,PCI Express,PS/2,RJ45,SATA III,USB 3.1,USB2.0,USB3.0,VGA Memory Type: DDR4 Form Factor: mATX Feature: Gaming,Gigabit Power: 24 needles + 4 needles Power Supply Type: 4+2 Phase
Dimension and Weight
Product weight: 0.5850 kg Package weight: 0.6300 kg Product size: 22.00 x 19.50 x 4.00 cm / 8.66 x 7.68 x 1.57 inches
Package Contents
1 x Motherboard, 1 x Baffle, 1 x Chinese Manual, 1 x SATA Data Cable
BIOS and drives download
Earthshaker A320M-VH: www.maxsun.com.cn/2019/0425/5148.html Challenger A320M-VH R2.0: www.maxsun.com.cn/2019/0820/5203.html
