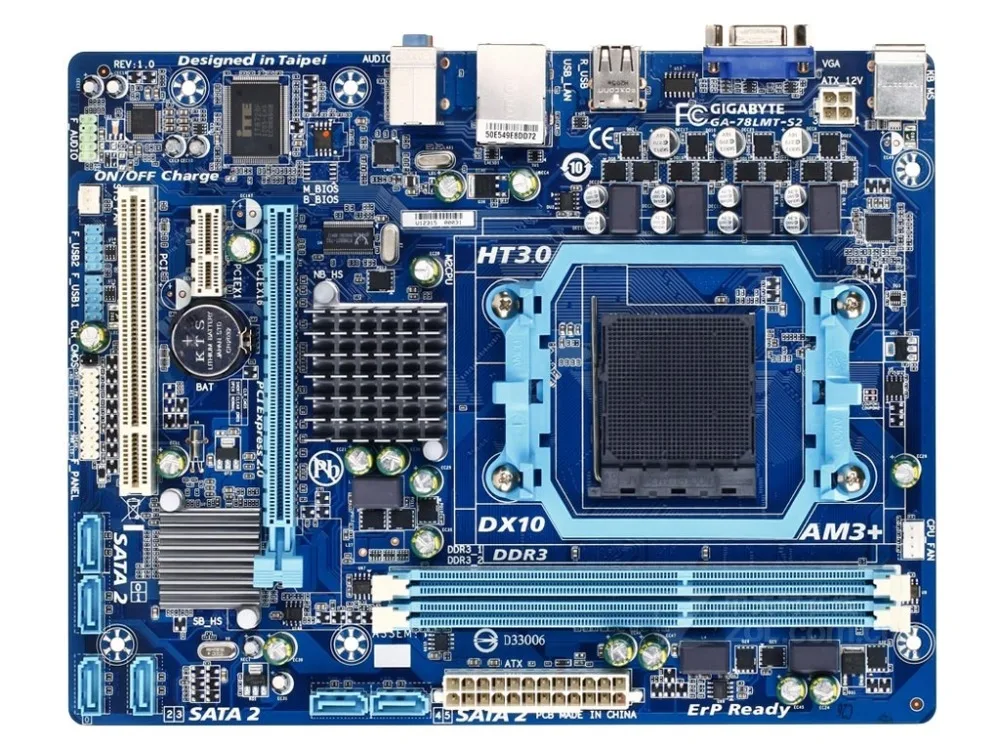

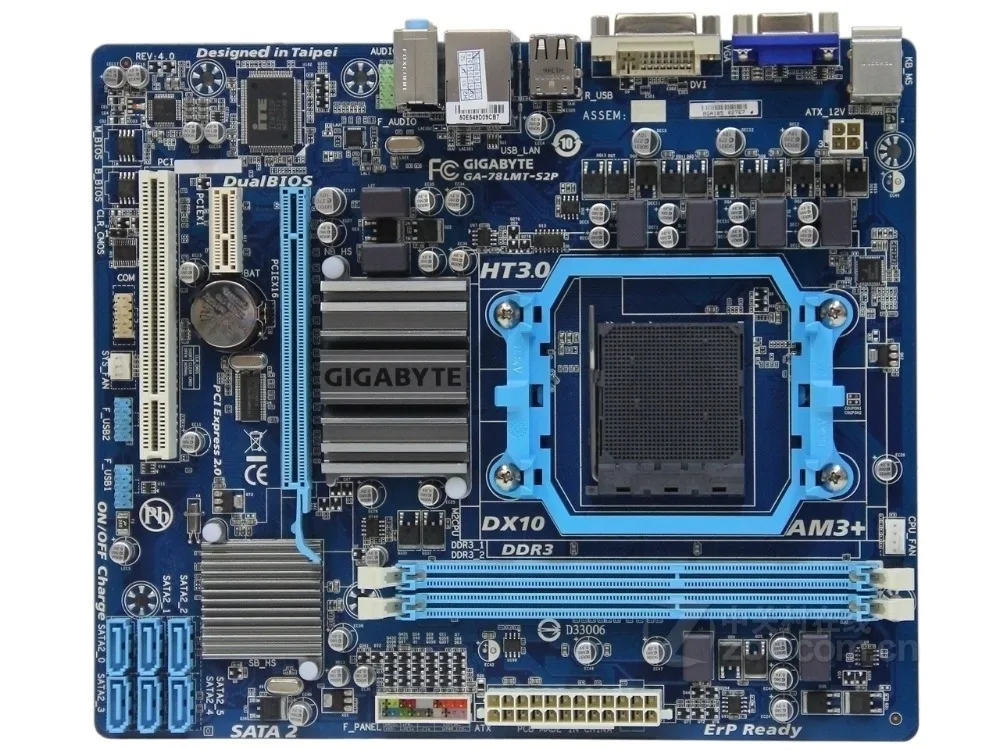

GIGABYTE GA-78LMT-S2 GA-78LMT-S2P Desktop Motherboard 760G Socket AM3 AM3+ DDR3 16G 78LMT-S2P 78LMT-S2 Original Used
- This motherboard is used , about 90% new
- 100% tested it is working well before shipping
- maybe without CMOS battery for air transport.
- Packing: motherboard with I/O shield back plate and sata cable.
GA-78LMT-S2 parameters
Gigabyte GA-78LMT-S2P detailed parameters
Motherboard chipset
Processor Specifications
Memory Specifications
Expansion Slots
I / O interface
Plate
Software Management
Other parameters
Motherboard Accessories
Warranty Information
Motherboard chipset
Integrated chip card / card / card
Chip manufacturers AMD
Main Chipset AMD 760G
Description AMD 760G chipset Northbridge + SB710 Southbridge chipset
Audio chip Realtek ALC889 8-channel audio chip
LAN chip onboard Realtek RTL8111E Gigabit Ethernet
Processor Specifications
AMD CPU platform
CPU Type Phenom II / Athlon II
CPU socket Socket AM3 +
Supports a number of CPU
Motherboard bus HT3.0 maximum support 5.2GT / s
Memory Specifications
Memory Type DDR3
2 × DDR3 DIMM memory slots
The maximum memory capacity of 8GB
Memory description support dual channel DDR3 1333 (OC) / 1066 / 800MHz Memory
Expansion Slots
PCI-E slot 1 × PCI-E X16 graphics slot
1 × PCI-E X1 slot
PCI slot 1 × PCI slot
SATA interface 6 × SATA II interface
I / O interface
USB interface 8 × USB2.0 interface (4 built-+4 backplane)
External ports 1 × VGA port, 1 × DVI interface
PS / 2 port PS / 2 mouse, PS / 2 keyboard port
Other interfaces 1 × RJ45 network interface
Audio Interface
Plate
Mainboard Micro ATX form factor
Dimensions 24.4 × 20.6cm
